Fueling Your Sound

The KANN series is adored by audiophiles all over the world for its performance that focuses on ultra-high output and clear sound.
KANN ULTRA, the 5th product in the KANN series, continues the success of the KANN series by providing the highest output of any Astell&Kern player, the inclusion of Triple Output Sound, and an optimized processor and UI/UX to make it even easier to enjoy clear sound performance.

With four Gain Modes that provides up to 16Vrms of desktop Hi-Fi level output and sound, and ES9039MPRO Dual DAC chips, KANN ULTRA perfectly powers many of today's headphones with high resolution. A separate Pre/Line Out allow users to enjoy the sound with a variety of different devices.

  • Triple Output Mode Featuring Separately Configured Circuit and Amplifier Designs
  • HEADPHONE OUT / PRE-OUT / LINE OUT
  • Next-generation Octa-Core processors with significant high-performance improvements
  • Supports 4 preset gain settings with ultra-high output up to 16Vrms (Headphone Out)
  • Equipped with ES9039MPRO Dual DACs
  • Features Digital Audio Remaster (DAR) technology
  • Supports playback up to 32bit/768kHz, Native DSD512
  • Features Astell&Kern's unique TERATON ALPHA technology
  • Battery 8,400 mAh (up to 11 hours of playback)

ES9039MPRO Dual DAC

Octa-Core CPU

Ultra-High 16Vrms Output

Triple Sound

Digital Audio Remaster

NATIVE DSD 512

32-bit 768 kHz bit-to-bit Play

TERATON ALPHA

Triple Output, Triple Sound

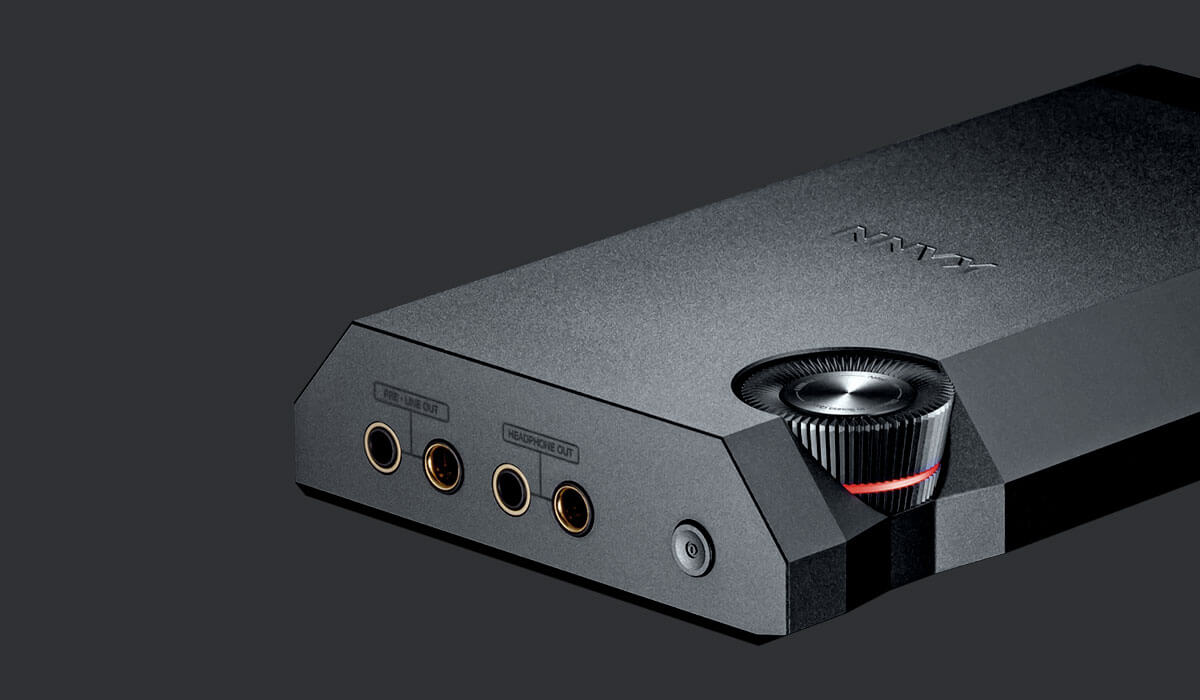

KANN ULTRA features a Triple Output Mode that allows you to enjoy Astell&Kern's perfectly prepared sound when connected to demanding headphones, highly detailed IEMs, and external devices.
Instead of simply separating the output ports, Astell&Kern's Teraton Alpha technology allows for separate amplifier/sound design for the Headphone Out and Line/Pre-Out ports to provide the optimal sound for each port.
Complete your powerful Head-Fi system even on portable devices with the KANN ULTRA with Triple Output.

  • * HEADPHONE OUT 3.5mm Port : S/PDIF Out supports

1. HEADPHONE OUT

The port features 4 preset gain settings and ultra-high output of up to 16Vrms. The headphone port is designed to perfectly run demanding headphones with high impedance using only the player with no external AMP.

2. PRE-OUT

Select Pre-Out mode on the Pre/Line Out port to output sound to an external amplifier or audio device.

[ Pre-out ]
This mode delivers sound through a specially designed Pre out amplifier, instead of the high-powered Headphone out amp.
Pre-Out functions like a PRE AMP and you can control the volume with the volume wheel.

  • * No Gain or Voltage settings, maximum output 2Vrms/4Vrms

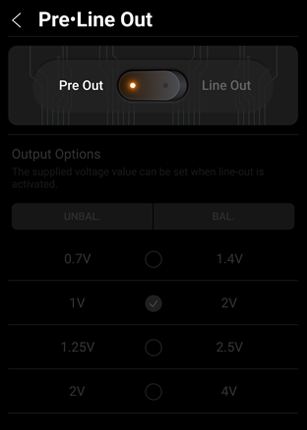

3. LINE OUT

Select Line Out mode on the Pre/Line Out port to output sound that is optimized when connected to external devices.

[ Line out ]
This mode outputs the sound from the DAC directly without going through an amplifier, resulting in the lowest noise level and making it ideal for connecting to external audio devices.

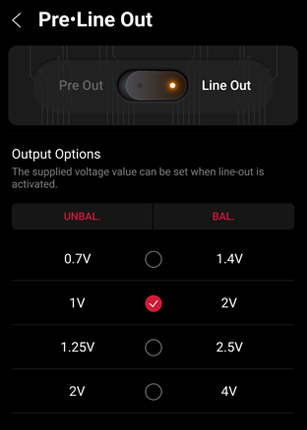

Line Out has a fixed voltage output (4 levels) and no volume control.

  • * Do not activate the Line Out mode while earphones or headphones are connected to the PRE·LINE OUT port. Doing so may cause permanent hearing loss.

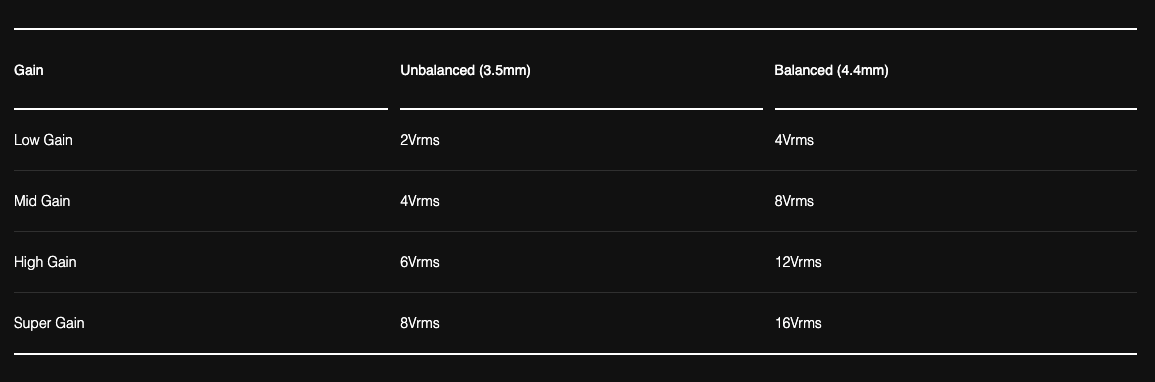

4. Gain Levels And Outputs Up to 16Vrms for The Perfect Head-Fi

To run the most sophisticated IEMs and headphones, a DAP needs to be able to fully deliver an output that matches the characteristics of the receiver.

KANN ULTRA features 4 preset gain settings up to 16Vrms, the most powerful output of any Astell&Kern player,
to optimally run the many IEMs and headphones available today.
The current-handling capability of the output port has been increased to reliably run devices of different impedances at the gain Level setting,
and the AMPs have been separated into Balanced and Unbalanced to optimize currents and reduce noise for the best possible sound.

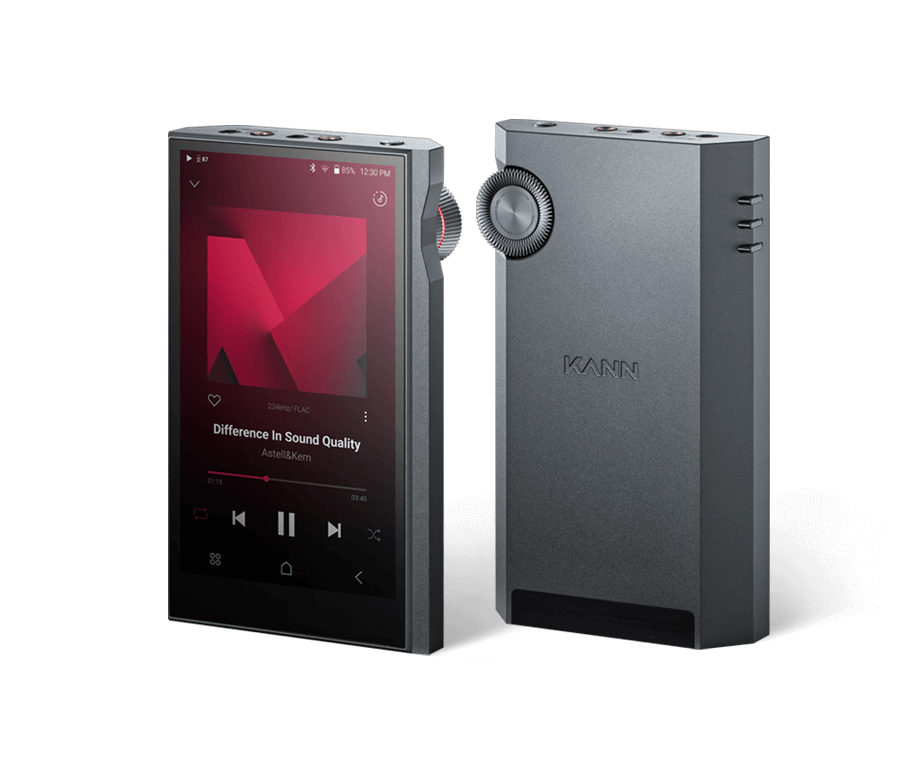

On top of providing the most powerful output, KANN ULTRA features a larger
5.5-inch screen and improved grip compared to KANN CUBE, which was popular
for its high output versatility. Weight of the KANN ULTRA has been significantly reduced to 390 grams.

TERATON ALPHA, The Essence of A&K Audio Technologies

It would not have been possible to combine the exquisitely designed R-2R DAC with ultra-precision resistors and Class A AMP, which was considered impossible to miniaturize, without the innovative audio technology of TERATON ALPHA. SE300 is an innovative audio player that is applied with current and temperature control of TERATON ALPHA technology and an optimized FPGA design.

TERATON ALPHA, engineered through endless research, is Astell&Kern's unique technology that has been designed to produce audio playback that is as close to the original sound through effective power noise removal, efficient power management and unwavering amplification, and a fully converted audio output interface.
Circuit structures of R2R DAC and Dual A/AB AMP that are applied for the first time in the SE300 is completed with the sound solution of TERATON ALPHA, creating the purest form of sounds and music.

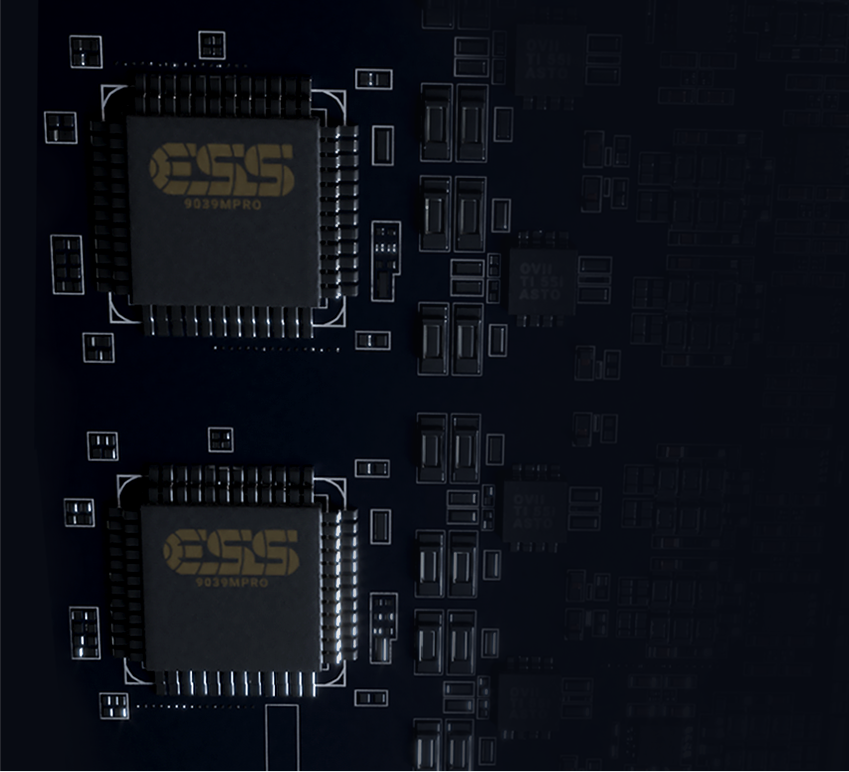

Upgraded Sound, the Newest ESS Flagship DAC

The KANN ULTRA is designed with dual ES9039MPRO DACs, the newest flagship DAC from ESS, to deliver richer and more expansive sounds that exceed your expectations.

The ES9039MPRO is an updated ES9039PRO model that has a built-in stereo hardware MQA renderer. It has even more advanced modulation than the existing flagship DAC to reduce power consumption, noise and distortions inside the DAC for enhanced audio performance.

Astell&Kern has redesigned the AMP BLOCK to ensure that the clear, high-resolution sound of the ES9039MPRO is clearly expressed through every port of the Triple Output, and each output's characteristics show its own advanced performance.

Audio Block Diagram

Incredible User Experience with Next-Generation Octa-Core Processors

KANN ULTRA is the first to feature the next-gen Octa-Core processors with significant performance improvements, allowing you to enjoy KANN ULTRA's incredible sound performance with faster system speeds and a 4th generation UI/UX that flows faster and smoother.

The audio circuit area is physically separated from the processor area, which includes the CPU, memory, and wireless communication components, and is equipped with a dedicated shield can to minimize the heat and noise generated by the processor.

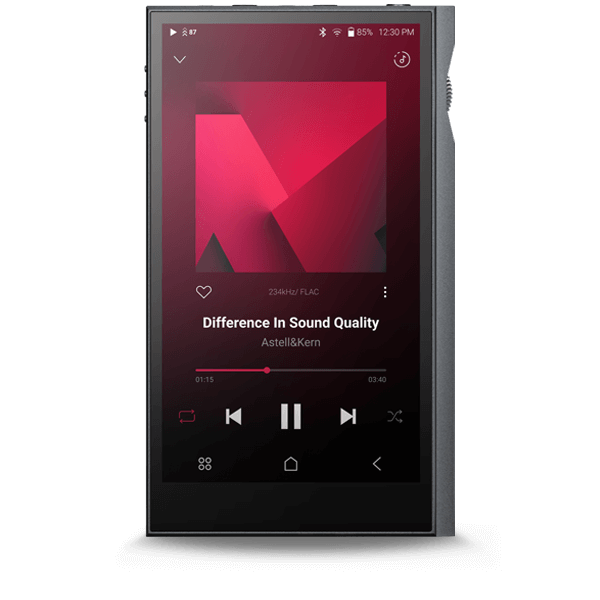

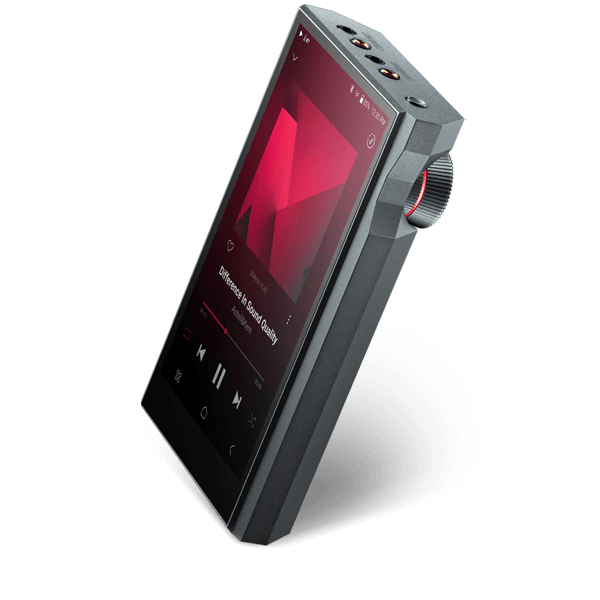

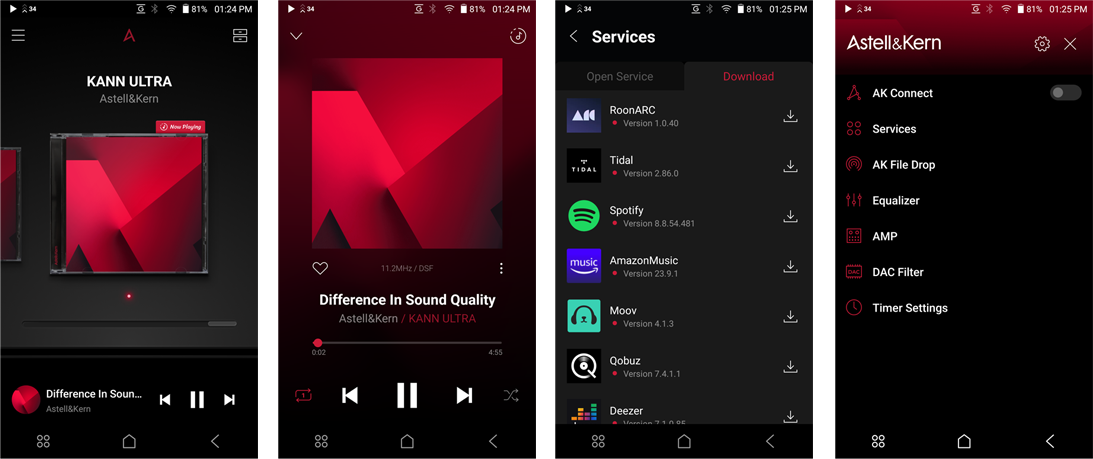

Crimson User Interface, A Music-Only Player

KANN ULTRA features a Crimson-themed UI/UX for the first time in the KANN series, making it a "Player for Music" that leaves an impression
in the process and experience of listening to music.

The Crimson UX/UI is designed so that users can quickly browse music categories and re-discover songs within their music library.
We also added an easy album art search function so that users can re-discover the joy of viewing and interacting with music album art whilst listening to their music.

The crimson theme focuses on edge, simplicity, and dark mode keywords.
The color theme of black with red highlights lowers visual fatigue and offers intuitive user experiences, and includes many other improvements
to the device’s user-friendliness of streaming app services, artist view, album sorting, and album art search function.

Immerse yourself in music with Crimson UX/UI.

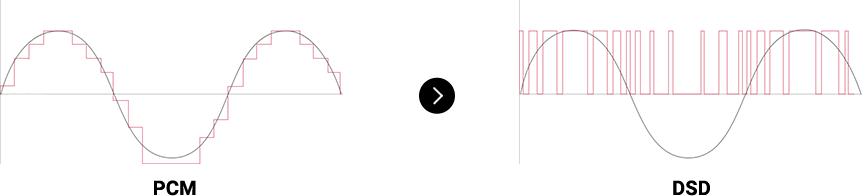

數位音頻重製技術，呈現更生動的原聲音質

SP3000M搭載了數位音頻重製（Digital Audio Remaster，DAR）技術，專為實現更高取樣率的精緻音質而設計。
DAR技術可將播放音源的取樣率升頻，突破原始格式的限制。更高的取樣率能帶來更精細的播放效果，呈現細膩且類比感十足的原聲音質，讓您享受更豐富的原音細節、音樂微妙的差異，以及更高層次的飽滿聲效。

Crossfeed功能，耳機聆聽中的揚聲器效果

在耳機環境中，左右聲道明顯分離，長時間聆聽可能會導致耳朵疲勞。
開啟Crossfeed功能後，您將體驗到清晰且舒適的音效。
Crossfeed將部分原始信號從一個聲道混入並傳送至另一聲道，並加入時間差以集中聲音的音像。
透過Shelf Cutoff、Shelf Gain和Mixer Level等詳細設定，您可以根據個人聆聽偏好調整Crossfeed的效果。

Real-Time Information Confirmed by Light

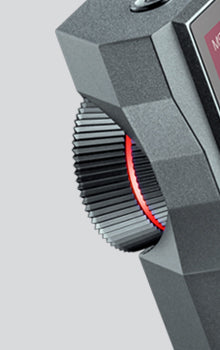

The LED lights on the volume wheel visually represent the power of the KANN ULTRA and show the volume level or the Bit Depth of the currently playing song.

  • * LED can be turned on or off according to user setting.

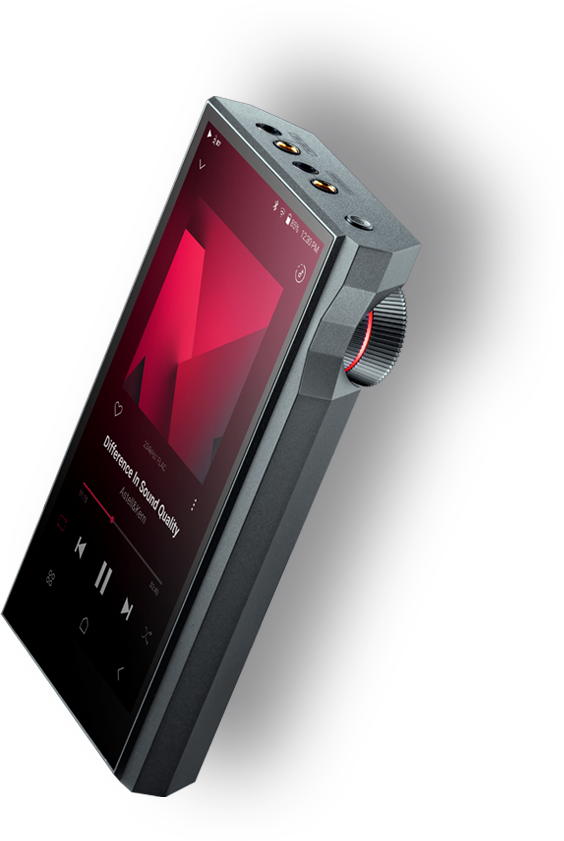

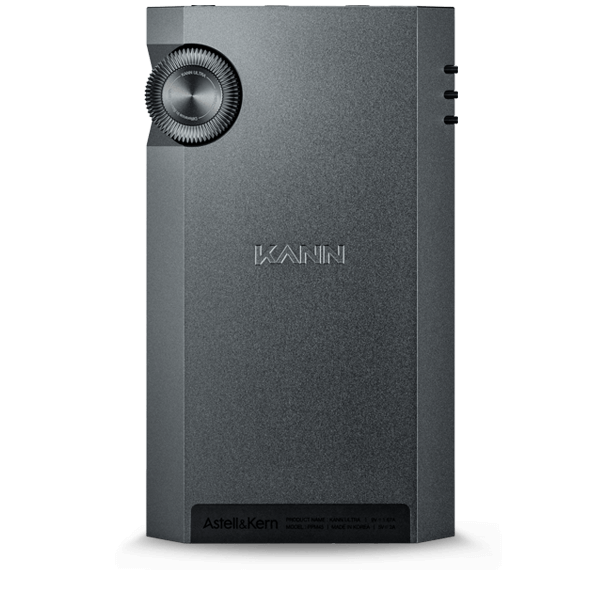

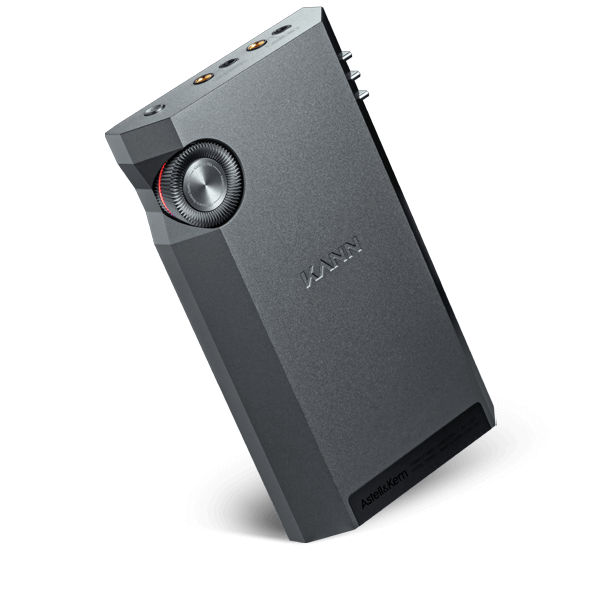

Design

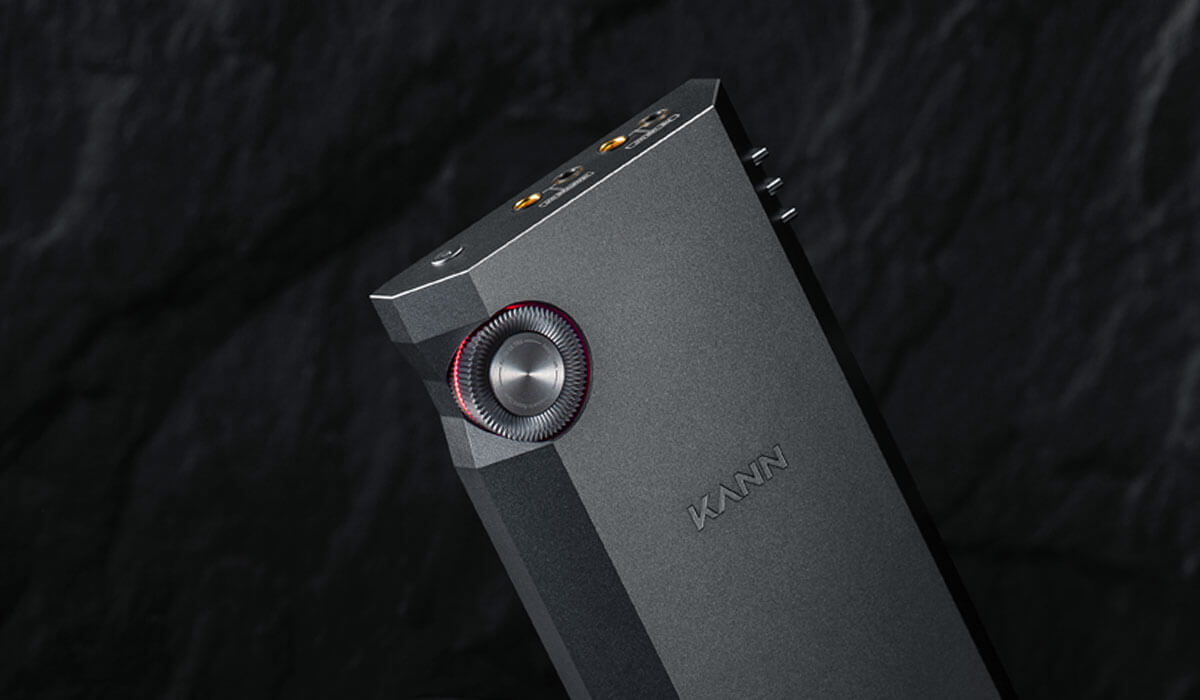

The design concept of KANN ULTRA is "Forceful Impact".

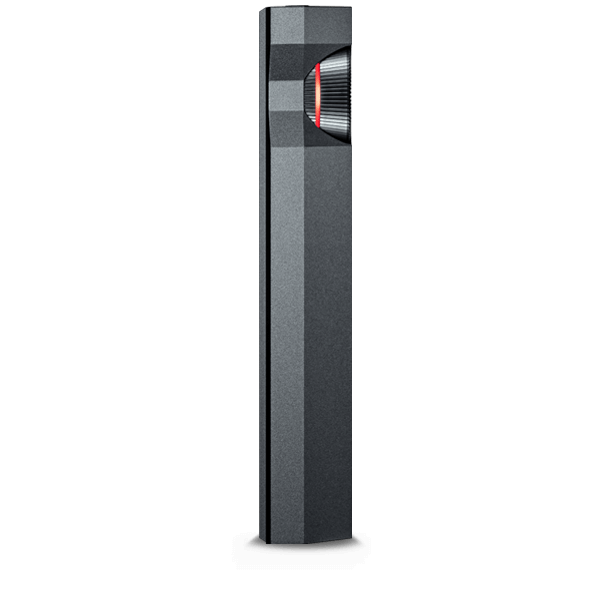

The design is an over-scaled volume wheel knob that has been slammed and embedded into the body of the KANN to visually represent its more powerful performance than its predecessor. With the KANN ULTRA, we continued the design identity of the KANN series, which emphasizes the hexagonal columnar body while still keeping it visible.

We minimized the visible parting lines and designed the wheel protectors so that the outer edge of the body where the volume wheel sits naturally acts as a protector and improves usability. These elements emphasize the bold mass of the KANN ULTRA, representing primal power through a solid chunk of metal.

We applied decorative parts that connect with the serrated pattern on the volume wheel knob to make the wheel visually larger and maintain a balance with the massive body, while expressing the powerful performance of the KANN ULTRA. Additionally, the hairline spin decoration applied to the rear of the wheel acts as a delicate detail element along with the lettering engraving, showing the volume wheel knob strongly embedded into the BODY.
Due to the increased size, we have redesigned the orientation of the volume wheel to accommodate usage in different environments, such as on the desk, or held in your hand.
