Hi-Fi Sound on-the-go

SR35

Main Actual Picture
Additional Actual Section Additional Actual Section Additional Actual Section Additional Actual Section

Hi-Fi Sound on-the-go

The A&norma series was created to enjoy the premium sounds of Astell&Kern in a portable size with best in class specifications.
SR25 MKII, the previous model in the series, was loved by audio enthusiasts and those just starting their personal audio journey thanks to its portable size and powerful Hi-Fi sound through a 4.4-mm balanced jack.

The A&norma SR35 inherits these strengths while applying the amplifier and audio design that was applied to Astell&Kern's premium products to deliver the authentic sound quality that Astell&Kern are so well known for. The ultra compact SR35 features 20 hours of continuous playback, while supporting Quad DAC and two-step Gain control, and the A&norma line's first introduction of New Generation Amp technology with Astell&Kern's long-standing know-how for an even more delicate and clear Hi-Fi sound at higher output.

We have also applied our new UI/UX with improved visuals and usability to the SR35 for a more immersive music experience. In addition to this the SR35 is equipped with Roon Ready and MQA full decoder support to further enhance the performance of our A&norma line.

  • Quad-DAC (Quad/Dual Switching Mode)
  • New Generation AMP Technology
  • 2-Step Gain Mode
  • NEW UI/UX - Crimson Theme
  • Dual Wi-Fi (2.4 & 5 GHz)
  • 20-hour continuous playtime
  • Supports two-way Bluetooth and LDAC, aptX™ HD
  • Roon Ready (First in A&norma series)

CS43198 Quad-DAC

2-Step Gain

Dual-Band Wi-Fi

aptX™-HD LDAC

Roon Ready

20hrs Playback

MQA Full Decoder

Quad DAC Mode for True Hi-Fi Sound

For the first time in the A&norma series, the SR35 deploys the CS43198 DAC from Cirrus Logic, in Quad DAC configuration. A very well-received DAC praised for its outstanding spatial sense and resolution.
In addition to this, a new design of audio circuit has been implemented, incorporating Astell&kern’s unique technologies along with the Quad DAC and our patented TERATON ALPHA technology for outstanding advancement in the dynamics, sense of space, resolution, and level of separation. Furthermore, our latest technologically advanced amplification circuitry, which was only available in our flagship products has now been incorporated to the SR35, boasting a dramatically improved and industry leading SNR of 130dB.
A Dual/Quad DAC Switching mode is offered enabling users to adjust and improve power management efficiency, further improving the long continuous playtime, a core feature of the A&norma series.

The SR35 supports Native DSD256 and PCM playback of up to 32 bit/384 kHz allowing you to enjoy true Hi-Fi sound without any restriction and free from distortion.

The Essence of Astell&Kern Technology – Equipped with New generation AMP

Astell&Kern's brand philosophy - refusing to overlook even the smallest differences in sound quality - has been recognized by numerous media and audiophiles throughour multiple releases of premium audio players that combine innovative circuits and amplifier technologies.

The SR35 is equipped with New generation AMP technology that was applied to the A&ultima line so that A&norma users can also enjoy the highest level of sound provided by the A&ultima line with this exclusive inhouse technology.

The new generation AMP technology applied to the SR35 is Astell&Kern's unique amplifier design that effectively improves noise reduction at high power output.
With this new technology, the SR35 contains the same amplifier design as the latest A&ultima and A&futura products, completely transforming into an amplifier design worthy of premium audio, from OPAMP selection to component placement and circuit design.

Moreover, in order to reliably operate different impedance output sources, the current handling capability at the output end is increasedto maximize the performance of various devices with one SR35.

2-Step Gain Mode for the Perfect Hi-Fi Experience

For seamless use of sensitive IEMs and hard to drive headphones, a device must provide suitable output, respective of the connected device’s specification.

The SR35 supports a 2-step Gain Level mode to create the perfect match for a wide range of headphones and IEMs, maintaining optimal sound output.
The two-step gain setting with "Normal Gain" and "High Gain" modes can generate a high current output to create a powerful sound and excellent driver control.
With up to 6 Vrms from the balanced connections, driving high-impedance headphones has never been easier.

SR25 MKII and SR35 Comparison (Output Level, S/N)

SR25 MKII
SR35
Output Level
Unbal. 2.0Vrms / Bal. 4.0Vrms
[Normal] Unbal. 2.1Vrms / Bal. 4.0Vrms [High] 3.1Vrms / Bal. 6.0Vrms
S/N
122dB @ 1kHz, Unbalanced 124dB @ 1kHz, Balanced
127dB @ 1kHz, Unbalanced 130dB @ 1kHz, Balanced

Audio Block Diagram

TERATON ALPHA, The Essence of A&K Audio Technologies

It would not have been possible to combine the exquisitely designed R-2R DAC with ultra-precision resistors and Class A AMP, which was considered impossible to miniaturize, without the innovative audio technology of TERATON ALPHA. SE300 is an innovative audio player that is applied with current and temperature control of TERATON ALPHA technology and an optimized FPGA design.

TERATON ALPHA, engineered through endless research, is Astell&Kern's unique technology that has been designed to produce audio playback that is as close to the original sound through effective power noise removal, efficient power management and unwavering amplification, and a fully converted audio output interface.
Circuit structures of R2R DAC and Dual A/AB AMP that are applied for the first time in the SE300 is completed with the sound solution of TERATON ALPHA, creating the purest form of sounds and music.

All-Day Music – Amazing Playtime

The SR35 provides premium-class audio specifications and genuineHi-Fi sound by Astell&Kern.
Along with the core value of A&norma series that seeks to provide unlimited Hi-Fi audio anywhere and at any time, we offer you the best portability in the digital audio player market, with a class leading long playtime and powerful output.

The compact size of the SR35 fits easily in your pocket and weighing in at only 184g is light enough to carry without any inconvenience.
With a maximum of 20-hour continuous playtime, you can enjoy music without a recharge all day long.
The SR35 is the perfect companion that you can use for long-haul flights as well as full days at work and vacations, guaranteeing you Hi-Fi sound anywhere, anytime.

New Experience, New User Interface

The SE300 comes with a redesigned Crimson-themed UI/UX transforming into a "true music player" for users to deeply connect with their music listening experience.

The new UI/UX is designed so that users can quickly browse music categories and re-discover songs within their music library.
We also added an easy album art search function so that users can re-discover the joy of viewing and interacting with music album art whilst listening to their music.

The crimson theme focuses on edge, simplicity, and dark mode keywords. The color theme of black with red highlights lowers visual fatigue and offers intuitive user experiences, and many other improvements were made to the device’s user-friendliness of app service, artist view, album sorting, and the album art search function.

Immerse yourself in music with the new UI/UX.

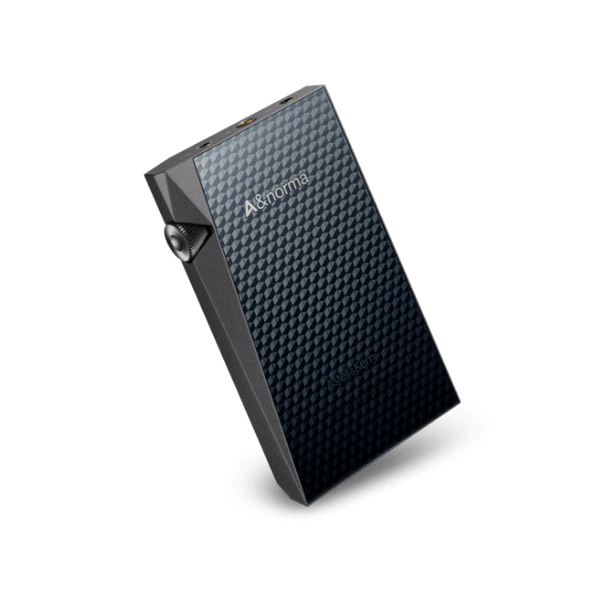

Design

The SR35 visualizes the powerful portability of the A&norma series into its design.

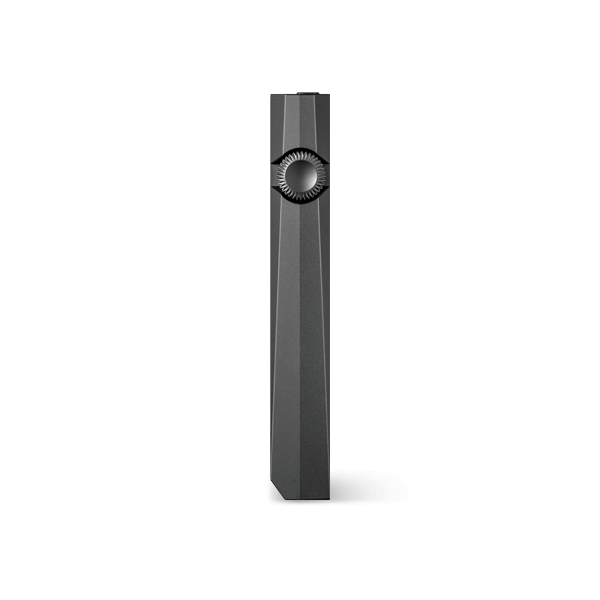

The intense dynamics of the A&norma series are symbolized as a mighty warrior's sword and shield on the device. The single bold line on the side and the surface that gets bigger at the bottom represent a sword of battle, and the delicately refined volume control and its concave surface symbolize a shield. These symbolic shapes found in the SR35’s design represent a warrior’s powerful force and characteristic.

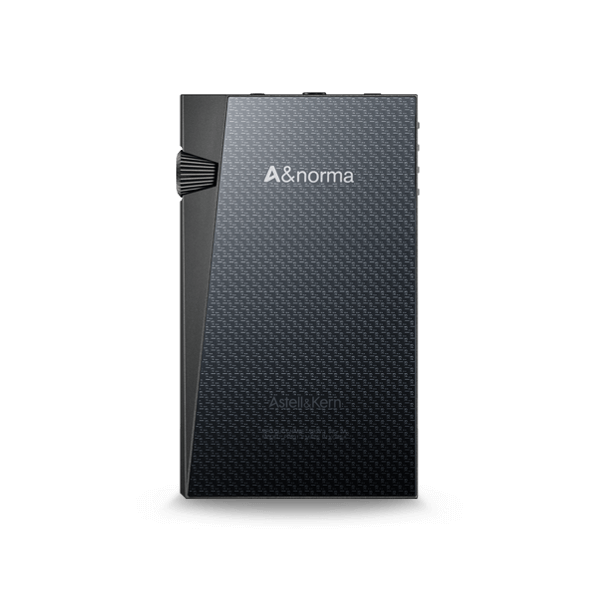

An "A" pattern on the rear glass creates a sophisticated rectangular pattern. This unique pattern on the SR35 symbolizes the first use of Quad DAC architecture in the A&norma series.

We kept our iconic angular display which works perfectly in the hand, further redefining the characteristic of the series.
